Płyta Główna dedykowana do skanerów ImageAccess Widetec CIS serii WT36CL WT48CL WT60CL od wersji systemu 7 i wzwyż
Polityka bezpieczeństwa
Zasady dostawy
Zasady zwrotu
(edytuj w module Customer Reassurance)

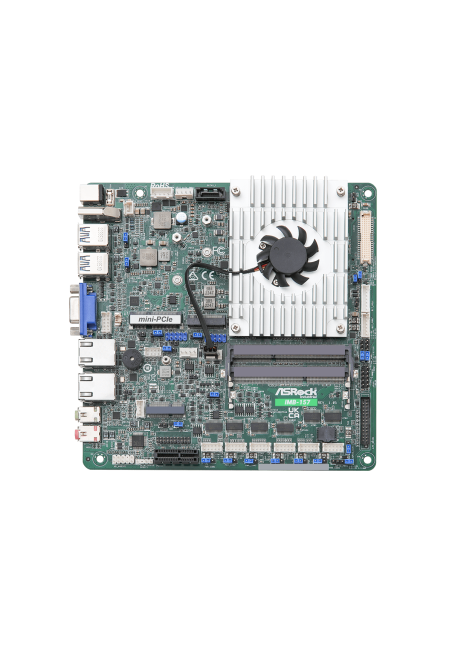

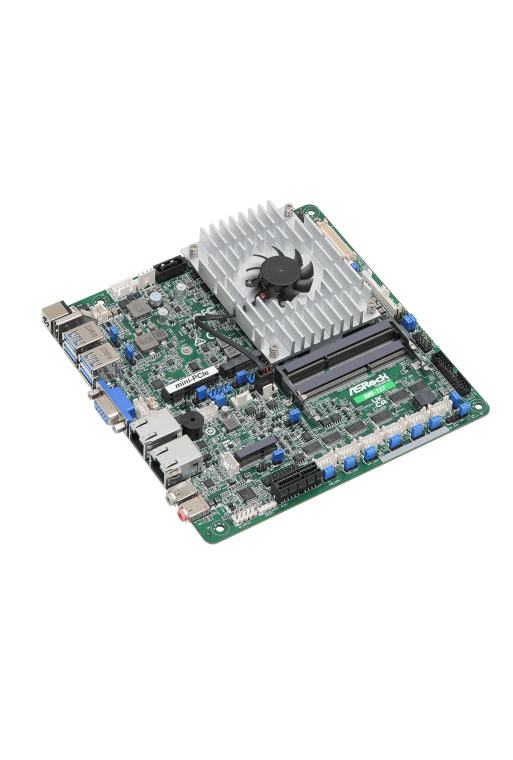

Płyta główna dedykowana do skanerów ImageAccess Widetec CIS od wersji 7.0 wzwyż obsługująca nowy rodzaj wyświetlacza 1280x800.
Płyta zawiera Pamięć RAM DDR 8GB
Wykorzystywana w skanerach Imageaccess WT36CL, WT48CL, WT60CL itp. -technologia CIS.
Specyfikacja płyty:
| CPU | Intel® Apollo Lake SoC Processor -IMB-157D (N4200, QC, 1.10 GHz, 6W) -IMB-157L (N3350, DC, 1.10 GHz, 6W) -IMB-157J (J3455, QC, 1.50 GHz, 10W) |
|---|---|
| Chipset | SoC |
| BIOS | AMI SPI 128 Mbit |
| Dimensions | Mini-ITX (6.7-in x 6.7-in x 1.5-in, 17.0 cm x 17.0 cm x 3.8 cm) |
|---|
| Technology | Dual Channel DDR3L 1867MHz |
|---|---|
| Capacity | 16 GB (8GB per DIMM) |
| Socket | 2 x 204-pin SO-DIMM |
| Controller | Intel® HD Graphics |
|---|---|
| HDMI | HDMI 1.4b Max resolution up to 4096x2160@24Hz |
| VGA | Max resolution up to 1920x1200@60Hz |
| LVDS | Dual channel 24 bit up to 1920 x 1200@60Hz |
| eDP | Max resolution up to 1920 x 1080@60Hz |
| MultiDisplay | Triple Display |
| PCIe | 1 x PCIe x1 (Gen1) |
|---|---|
| mini-PCIe | 1 x Full/Half size with PCIe Gen2 x1 and USB 2.0 |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe Gen2 x1 and USB 2.0 for Wireless |
| Interface | Realtek ALC897, High Definition Audio. Line-out, Mic-in |
|---|
| Controller/ Speed | LAN1: Realtek RTL8111H with 10/100/1000 Mbps LAN2: Realtek RTL8111H with 10/100/1000 Mbps |
|---|---|
| Connector | 2 x RJ-45 |
| HDMI | 1 x HDMI1.4b |
|---|---|
| VGA | 1 |
| Ethernet | 2 x 1 Gigabit LAN |
| USB | 4 x USB 3.2 Gen1 |
| Audio | 2 (Mic-in, Line-out) |
| DC Jack | 1 |
| USB | 4 x USB 2.0 |
|---|---|
| COM | COM1, COM2 (RS-232/422/485) COM3, COM4, COM5, COM6 (RS-232) |
| Parallel | 1 (shared with GPIO) |
| GPIO | 8 x GPI, 8 x GPO (shared with LPT header) |
| TPM | 1 x Header |
| LVDS | 1 (shared with eDP, switch by BIOS) |
| eDP | 1 (shared with LVDS, switch by BIOS) |
| VGA | 1 x Header (shared with VGA Port) |
| Speaker Header | 1 |
| SATA PWR Output | 1 |
| M.2 | 1 x M.2 (Key M, 2242 / 2260) with SATA3 for SSD |
|---|---|
| SATA | 1 x SATA3 (6Gb/s) |
| Output | From Super I/O to drag RESETCON# |
|---|---|
| Interval | 256 Segments, 0, 1, 2, ...255sec |
| Input PWR | +12V or +19V~+24V DC-In (DC Jack / 4-pin DC-in PWR Con) |
|---|---|
| Power On | AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready |
| Operating Temp | 0ºC ~ 60ºC |
|---|---|
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Gift Package | 2 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020440000AK) 1 x I/O Shield THIN (13G020440010AK) 2 x COM Cable (14G000000310AK) 1 x SATA Data Cable (14G00010107DAK) 1 x SATA Power Cable (14G000100410AK) |
|---|---|
| Bulk Package | 2 x SCREW M2,D=5.3 (13G020302010AK) 2 x SCREW FOR WIFI CARD (13G020305011AK) 1 x I/O Shield (13G020440000AK) 1 x I/O Shield THIN (13G020440010AK) |
