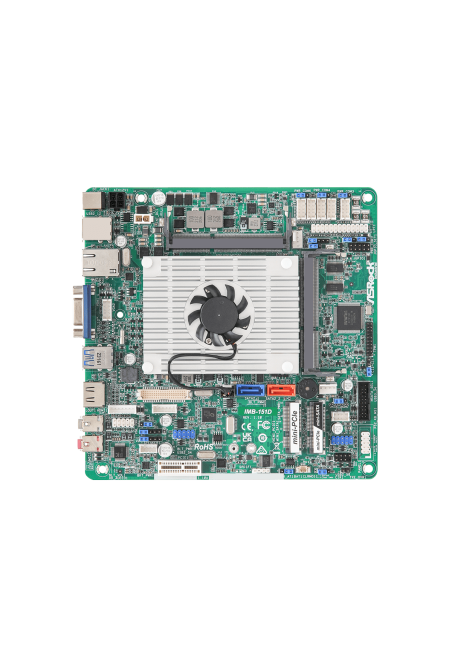

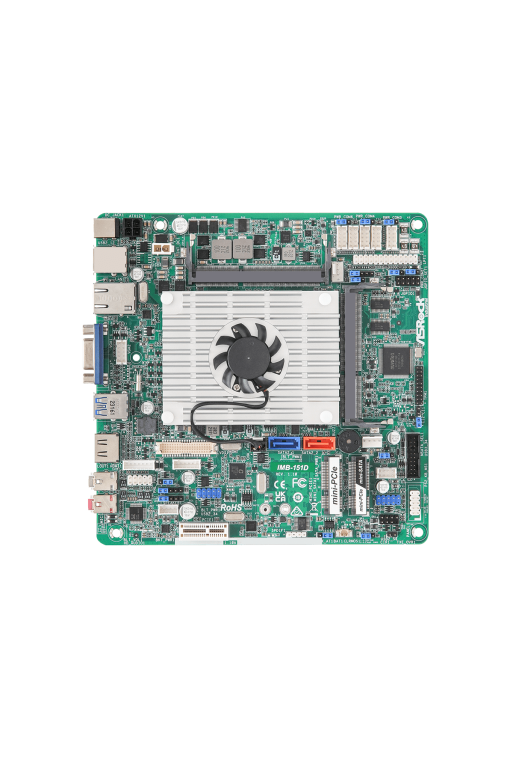

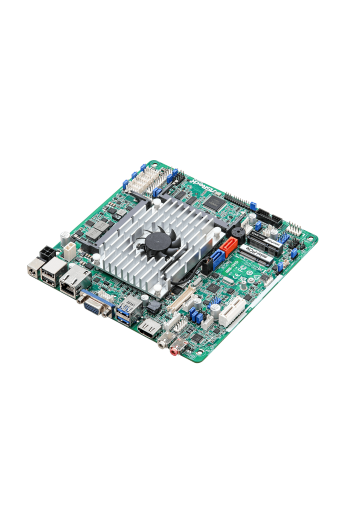

Main plate dedicated to ImageAccess Widetec CIS scanners in version 6 supporting the 800x480 display.
The disc contains RAM DDR 8GB
Used in ImageAccess WT36CL, WT48CL, WT60CL etc. -CIS technology.
It is theoretically and practically possible to install the ImageAccess version 7 on this disc. The required disk exchange with the Debian S2N base system with version 7, but this is also an unofficial version - officially not available. The changes are significant in the graphical interface (including the zoom of the scanned document in the preview) and work properly despite the lower screen resolution in the scanners version 6 (1280x800 vs 800x480), additionally allows you to set up a password for access to scanned documents stored on the scanner's disk by the participation of SMB (Windows 10 from a certain point in time and Windows 11 by default began blocking SMB's network access without password -the bypass is to lower Windows security level by entry into the registry, but not everywhere such a change is possible due to company policy).
When replacing the board it is necessary to rehost the installed scanner options - MAC addres changes and the options keys change.
By ordering the CDs with the service (please check in the notes or contact -best email) -it will be done by us during the visit.
Plate specification:
Processor System
| CPU |
Intel® Baytrail SoC Processor
-IMB-151D (J1900, QC, 2.00 GHz, 10 W)
-IMB-151D-WF (J1900, QC, 2.00 GHz, 10 W)
-IMB-151N (N2930, QC, 1.83 GHz, 7.5 W) |
| Chipset |
SoC |
Form Factor
| Dimensions |
Mini-ITX (6.7-in x 6.7-in, 17.0 cm x 17.0 cm) |
Memory
| Technology |
Dual Channel DDR3 1333 MHz |
| Capacity |
8GB |
| Socket |
2 x SO-DIMM |
Graphics
| Controller |
Intel® Gen7 Intel Graphics DX 11*, OGL3.2 |
| HDMI |
Supports max resolution up to 1920 x 1200 |
| VGA |
Max resolution up to 1920 x 1200@60Hz |
| LVDS |
Supports max resolution up to 1920 x 1200@60Hz |
| MultiDisplay |
Dual Display |
Expansion Slot
| PCIe |
1 x PCIe x1 |
| mini-PCIe/mSATA |
1 x Full size with PCIe x1, SATA2 and USB 2.0 |
| mini-PCIe |
1 x Half size with PCIe x1 and USB 2.0 |
Audio
| Interface |
Realtek ALC662/897 HD, High Definition Audio. Mic-in / Line-out |
Ethernet
| Controller/ Speed |
10/100/1000 Mbps |
| Connector |
1 x Realtek RTL8111G/RTL8111H-CG |
Rear I/O
| HDMI |
1 |
| VGA |
1 |
| Ethernet |
1 |
| USB |
2 x USB 3.0, 2 x USB 2.0 |
| Audio |
2 (Mic-in, Line-out) |
| DC Jack |
1 |
Internal Connector
| USB |
2 x USB 3.0, 4 x USB 2.0 |
| COM |
4 x COM (RS-232), 1 x COM (RS-232/422/485) |
| Parallel |
1 |
| GPIO |
4 x GPI + 4 x GPO |
| TPM |
1 x Header |
| LVDS |
1 |
| SATA PWR Output |
1 |
| Speaker Header |
1 |
| VGA |
1 |
Storage
Watchdog Timer
| Output |
From Super I/O to drag RESETCON# |
| Interval |
256 Segments, 0, 1, 2, ...255sec |
Power Requirements
| Input PWR |
12~19V DC-In (4-pin ATX PWR Con) |
| Power On |
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready |
Environment
| Operating Temp |
0ºC ~ 60ºC |
| Storage Temp |
-40° C ~ 85° C |
| Operating Humidity |
5% ~ 90% |
| Storage Humidity |
5% ~ 90% |
Accessories
| Gift Package |
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020189000AK)
1 x I/O Shield THIN (13G020190000AK)
2 x COM Cable (14G000000310AK)
1 x SATA Data Cable (14G00010107DAK)
1 x SATA Power Cable (14G000100410AK) |
| Bulk Package |
2 x SCREW FOR WIFI CARD (13G020305011AK)
1 x I/O Shield (13G020189000AK)
1 x I/O Shield THIN (13G020190000AK) |
